UL20276 多芯電腦線

 美國安規UL 20276 Multi-Core Computer Cable 多芯電腦線，多芯數字信號線材，一般芯線會做成對絞，進行信息對輸，這樣不會受到電波影響畫質.

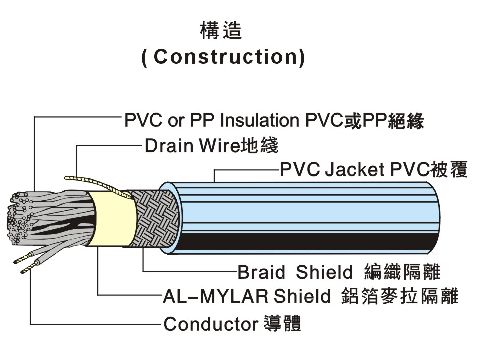

■ 產品說明:
● 導體使用裸軟銅或鍍錫軟銅絞線
●PVC或半硬PVC或PP絕緣
●芯線集合后鋁箔麥拉帶隔離
●裸軟銅或鍍錫軟銅線地線
●地線置于鋁箔麥拉帶與編織層之間
●裸軟銅或鍍錫軟銅編織隔離
●PVC被覆
●額定溫度：80℃；額定電壓：30volts
●可通過UL VW-1垂直耐燃測試
●參考標準：UL 758；UL 1581

■ PRODUCT DESCRIPTION：
● Tinned or bare stranded copper conductor.
●Color-coded PVC or SR-PVC or PP insulation.
●Cores cabled under aluminum mylar shield.
●Tinned or bare copper drain wire.
●Drain wire laid between aluminum mylar and braid.
●Bare or tinned copper wire braid shield.
●PVC jacket.
●Rated temperature:80℃.Rated voltage:30 volts.
●Passes UL VW-1 vertical flame test.
●Reference standard：UL subject 758, UL1581.

■ 產品應用：
● 用于二類電子電路設備內部與外部連線

■ APPLICATIONS:
● Forinternal wiring or external wiring of class 2 systems and equipment and electrical equipment.
